Since we've had some discussions lately non this and related subjects thought I would fix the earlier PhotoBucket photo and add some more reference pictures I've collected related to 70 San Jose Mach I side cladding black out practices
Guess we'll work front to rear

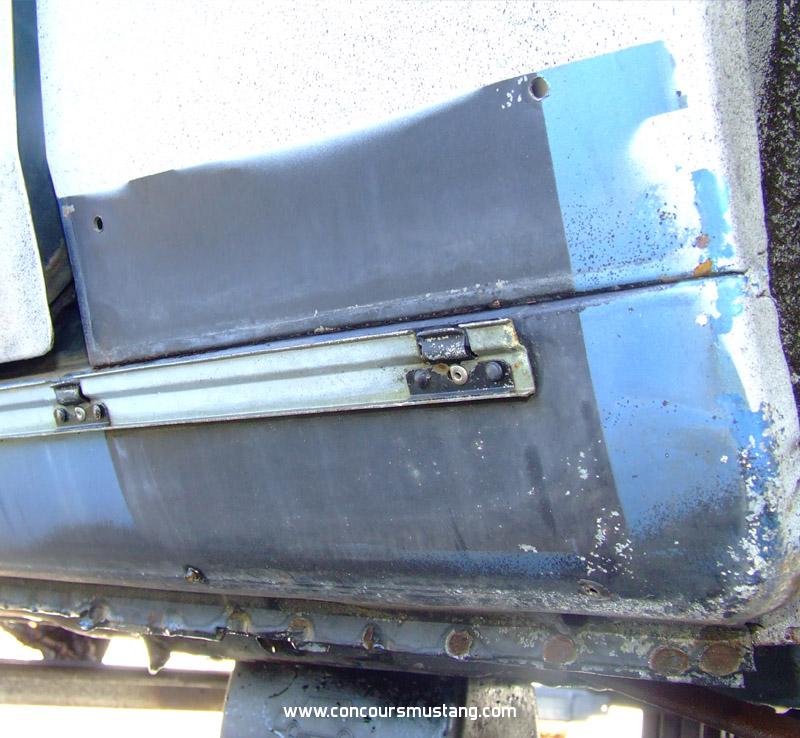

From 0R114xxx Fender black out applied with brush
![](http://www.concoursmustang.com/forum/gallery/14/6-030121155312.jpeg)
0R135xxx brush used to apply black to the froward edge of rocker panel and front fender
![](http://www.concoursmustang.com/forum/gallery/14/6-030121155407.jpeg)
One more example
![](http://www.concoursmustang.com/forum/gallery/14/6-030121160051.jpeg)
Another example tanked from a lower angle. No attempt to black out the rocker panel under the door opening other than the standard pinch weld black out applied to all Mustangs
![](http://www.concoursmustang.com/forum/gallery/14/6-030121155834.jpeg)
![](http://www.concoursmustang.com/forum/gallery/14/6-030121160438.jpeg)
Another 70 San Jose example showing the rear quarter panel and rear rocker sprayed with black paint.
![](http://www.concoursmustang.com/forum/gallery/14/6-030121155812.jpeg)
0R135xxx quarter panel and rear rocker application fairly sharp straight edge from likely masking
![](http://www.concoursmustang.com/forum/gallery/14/6-030121155532.jpeg)
These along with the picture posted in should provide an idea of how the black out was done typically during 1970 at San Jose. Hope they help
