Author Topic: 1968 disc brake caliper date codes?  (Read 1673 times)

Offline RoyceP

  • Hero Member
  • *****
  • Posts: 1536
1968 disc brake caliper date codes?
« on: August 17, 2018, 11:52:19 AM »
I had the calipers that came off my car rebuilt by the local NAPA store, who of course used a subcontractor. In any case I got back the same pair that I gave them and so it seems that part went well. One thing I don't quite understand is the date codes. They are marked "19" and "28" along with FoMoCo cartouche. I checked the library and unless I am missing something there does not seem to be any mention of how to decode this.

1968 W code 427 Cougar XR-7 GTE Feb 23 Dearborn C6 / 3.50 open
1968 R code 428CJ Cougar XR-7 May 13 Dearborn C6 / 3.91 T - Lock

Offline Bossbill

  • Hero Member
  • *****
  • Posts: 3283
  • In the middle of project hell
Re: 1968 disc brake caliper date codes?
« Reply #1 on: August 17, 2018, 02:55:49 PM »
My SWAG would be DOY (day of year) from beginning of year (1-365/366).
Perhaps Jan 18 and Jan 28 in your case?
Bill
Concours  Actual Ford Build 3/2/67 GT350 01375
Driven      6/6/70 0T02G160xxx Boss 302
Modified   5/18/65 5F09A728xxx Boss 347 Terminator-X 8-Stack
Race        65 2+2 Coupe conversion

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24632
Re: 1968 disc brake caliper date codes?
« Reply #2 on: August 17, 2018, 04:51:57 PM »
Agree that it looks like a Julian date pattern and since we have seen this same pattern used on other brake components by the same suppliers I think its a fairly safe bet.

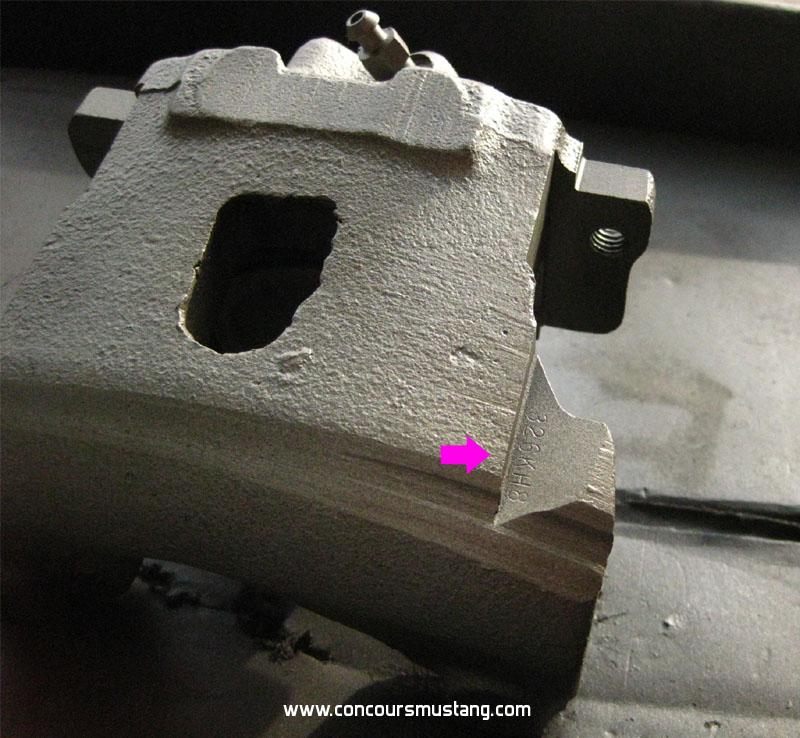

Might want to check for a second (different from the casting date) located as shown in the example below


Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline CT428CJ

  • Full Member
  • ***
  • Posts: 117
Re: 1968 disc brake caliper date codes?
« Reply #3 on: October 21, 2019, 11:20:55 PM »
Is this a date code as well?

If so, can anyone tell me how to decode it?

Part is a caliper support bracket for a 1968 Mustang.

My guess would be the part was forged on the 303rd day of 1967 on the 3rd shift but I'm looking for confirmation.
