67 A/C hard lines
« on: January 16, 2016, 06:11:55 PM »
Would clear zinc be the assembly line part finish ? Also the brass parts of these hoses is there something to use to brighten them without using steel wool or buffing. I would like to preserve the original finish.
Logged
8F02R218047-  July 18 1968   Dearborn

Offline 196667Bob

  • Hero Member
  • *****
  • Posts: 1054
Re: 67 A/C hard lines
« Reply #1 on: January 16, 2016, 08:25:56 PM »
The "old standby" Brasso will probably do what you want on the brass fittings.

Bob
Logged
1966 Coupe, C Code, 3 Sp MT, 6T07C154XXX, Build Date 11/22/65
1967 Conv, C Code, C4, 7F03C154XXX, Actual Build Date 01/31/67
MCA 04909

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24628
Re: 67 A/C hard lines
« Reply #2 on: January 17, 2016, 02:32:37 PM »
You don't want them looking like polished pieces of dinnerware as a finished look. But shinny and nice is one step along the way. From there they can oxidize a little to return them (hopefully) to a nice even patina

+1 on the Brasso stuff is magic at times  :)

Will post some pictures of the other fittings and ends later if someone doesn't do it before
Logged
Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline preaction

  • Hero Member
  • *****
  • Posts: 1330
Re: 67 A/C hard lines
« Reply #3 on: January 17, 2016, 03:47:20 PM »
as always a picture is worth a thousand words. The pics below are the parts after evaporust and the hose end the same treatment but with a little cleaning up. I just haven't seen what is expected, thanks. The 90* piece with the coarse thread looks to have clear zinc witch  was threaded into a hose and protected. So it seemed that all of these pieces may have been zinc plated at one time.
Logged
8F02R218047-  July 18 1968   Dearborn

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24628
Re: 67 A/C hard lines
« Reply #4 on: January 17, 2016, 07:24:34 PM »

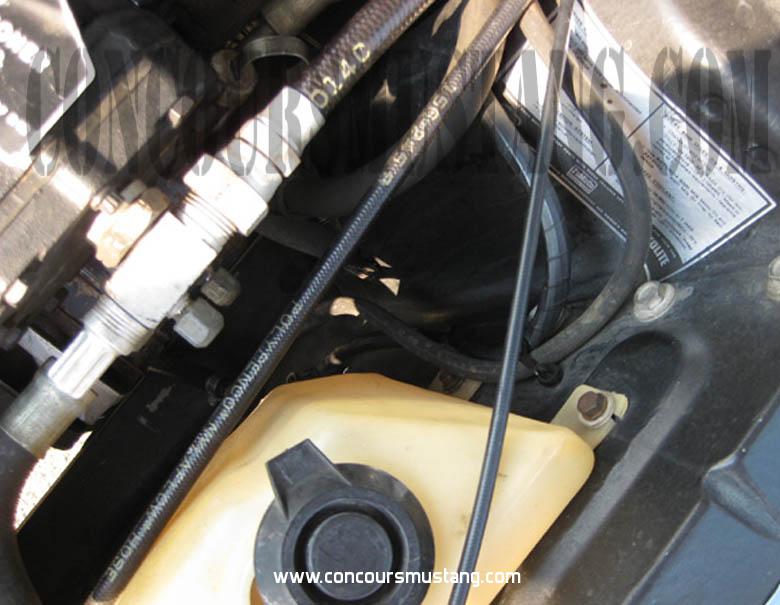

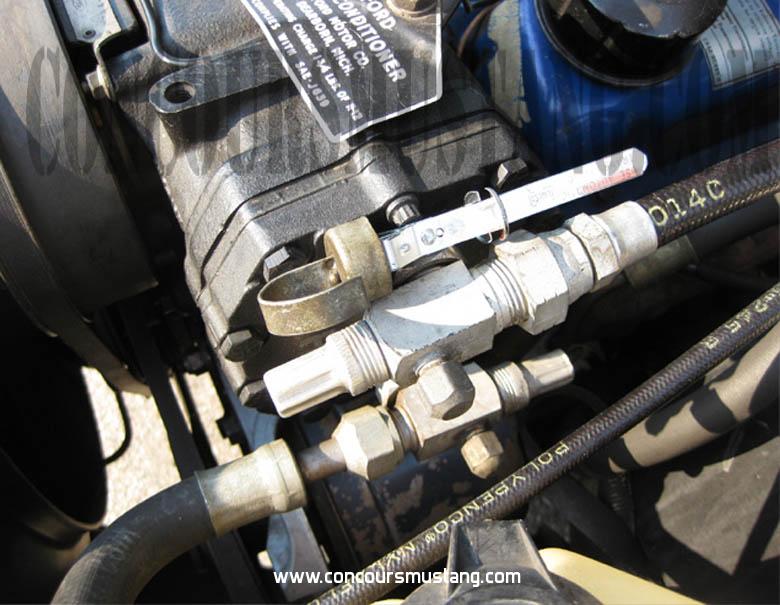

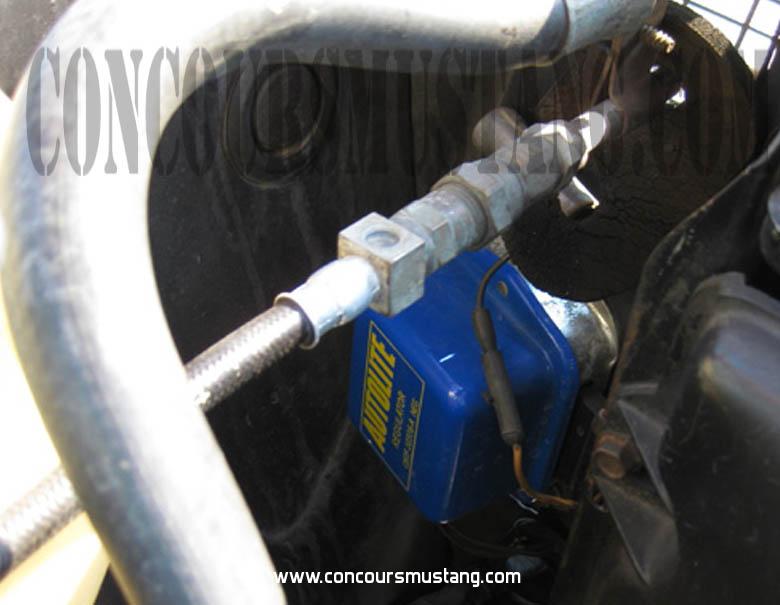

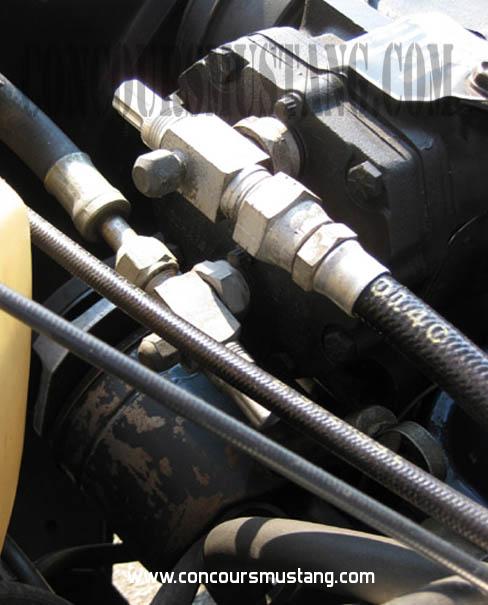

Though the brass is tarnished it appears the the only parts that retain that look are the filler caps, the sight block and the fittings/adapters used to attach it to the two hoses.  Looks like zinc plating except, of course, the aluminum shutoff caps

Since the example I found was from a car posted in its own thread I posted additional AC related pictures there though we can continue the discussion in this thread. Will also post those same pictures to this thread

http://www.concoursmustang.com/forum/index.php?topic=11031.new#new


















Logged
Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline preaction

  • Hero Member
  • *****
  • Posts: 1330
Re: 67 A/C hard lines
« Reply #5 on: January 17, 2016, 09:50:52 PM »
Im going to guess I got lucky the one flex line has a engineering  number on it and one does not, is this one a replacement ? And would the hoses be the same between 67 and 68 ? This hose closely resembles the hose in Jeffs pic above coming out of the bottom of the compressor and going forward.
« Last Edit: January 17, 2016, 09:55:14 PM by preaction »
Logged
8F02R218047-  July 18 1968   Dearborn

Offline Bob Gaines

  • Global Moderator
  • Hero Member
  • ****
  • Posts: 9363
Re: 67 A/C hard lines
« Reply #6 on: January 17, 2016, 10:00:48 PM »
Quote from: J_Speegle on January 17, 2016, 07:24:34 PM
Though the brass is tarnished it appears the the only parts that retain that look are the filler caps, the sight block and the fittings/adapters used to attach it to the two hoses.  Looks like zinc plating except, of course, the aluminum shutoff caps

Since the example I found was from a car posted in its own thread I posted additional AC related pictures there though we can continue the discussion in this thread. Will also post those same pictures to this thread
















While we are discussing A/C  details,I would like to point (since Jeff's pictures make it convenient) out the slight difference on the top between the two small charge port caps .  This is typical from what I have seen on 67 and 68. All of the undisturbed ones I have seen did not match ether. I am not so sure on other years.
Logged
Bob Gaines,Shelby enthusiast, Shelby collector , Shelby concours judge SAAC,MCA,Mid America Shelby

Offline Bob Gaines

  • Global Moderator
  • Hero Member
  • ****
  • Posts: 9363
Re: 67 A/C hard lines
« Reply #7 on: January 17, 2016, 10:08:40 PM »

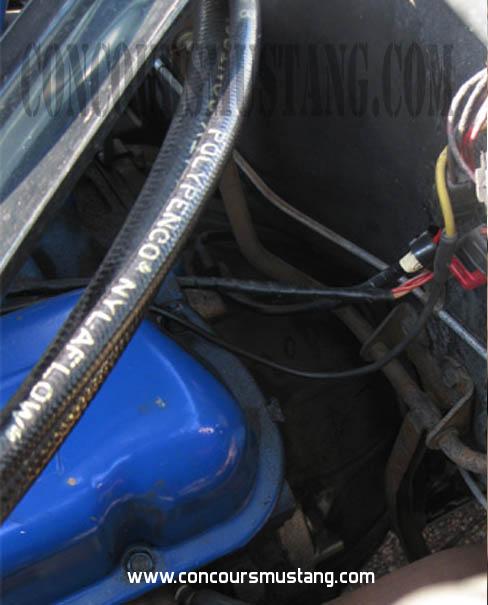

The third picture hose is a modified one not factory. The date codes and mfg info is printed on the hose. The engineering number is printed on small white vinyl labels . You can see reminents of the white labels in some of Jeff's pictures. They typically are seen on the radiator support end of the hose  but sometimes on the firewall end. The hose going to the condenser with the curved one piece end will many times have the engineering number stamped into the crimped metal end.
Logged
Bob Gaines,Shelby enthusiast, Shelby collector , Shelby concours judge SAAC,MCA,Mid America Shelby

Offline preaction

  • Hero Member
  • *****
  • Posts: 1330
Re: 67 A/C hard lines
« Reply #8 on: January 17, 2016, 11:26:03 PM »
Should the service valves (mounted to the compressor) have engineering numbers on them ?
Logged
8F02R218047-  July 18 1968   Dearborn

Offline Bob Gaines

  • Global Moderator
  • Hero Member
  • ****
  • Posts: 9363
Re: 67 A/C hard lines
« Reply #9 on: January 18, 2016, 01:10:50 AM »
Quote from: preaction on January 17, 2016, 11:26:03 PM
Should the service valves (mounted to the compressor) have engineering numbers on them ?
Not typically from what I have seen.
Logged
Bob Gaines,Shelby enthusiast, Shelby collector , Shelby concours judge SAAC,MCA,Mid America Shelby

Offline preaction

  • Hero Member
  • *****
  • Posts: 1330
Re: 67 A/C hard lines
« Reply #10 on: January 19, 2016, 05:33:58 PM »
Jeff, thanks for the pictures. In you pics though the car is a 68, would the flex lines and related parts be the same for a 67 ?
Logged
8F02R218047-  July 18 1968   Dearborn

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24628
Re: 67 A/C hard lines
« Reply #11 on: January 19, 2016, 07:35:35 PM »
Quote from: preaction on January 19, 2016, 05:33:58 PM
Jeff, thanks for the pictures. In you pics though the car is a 68, would the flex lines and related parts be the same for a 67 ?

Great question seeing that you originally specified 67. I jumped at the opportunity to show the best pictures of the fittings and end I came to.

Will check and report back
« Last Edit: January 19, 2016, 07:37:57 PM by J_Speegle »
Logged
Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline Bob Gaines

  • Global Moderator
  • Hero Member
  • ****
  • Posts: 9363
Re: 67 A/C hard lines
« Reply #12 on: January 19, 2016, 10:13:12 PM »
Quote from: preaction on January 19, 2016, 05:33:58 PM
Jeff, thanks for the pictures. In you pics though the car is a 68, would the flex lines and related parts be the same for a 67 ?
if you mean the long flexible hoses then yes there was a transition having to do with a different style crimped ends between 67 and 68.
Logged
Bob Gaines,Shelby enthusiast, Shelby collector , Shelby concours judge SAAC,MCA,Mid America Shelby

Offline krelboyne

  • Hero Member
  • *****
  • Posts: 1223
    • West Coast Classic Cougars
Re: 67 A/C hard lines
« Reply #13 on: January 19, 2016, 10:19:36 PM »
Quote from: preaction on January 19, 2016, 05:33:58 PM
Jeff, thanks for the pictures. In you pics though the car is a 68, would the flex lines and related parts be the same for a 67 ?

I have several versions from my Dearborn 1967 Cougars and 1968 San Jose / Dearborn Cougars.

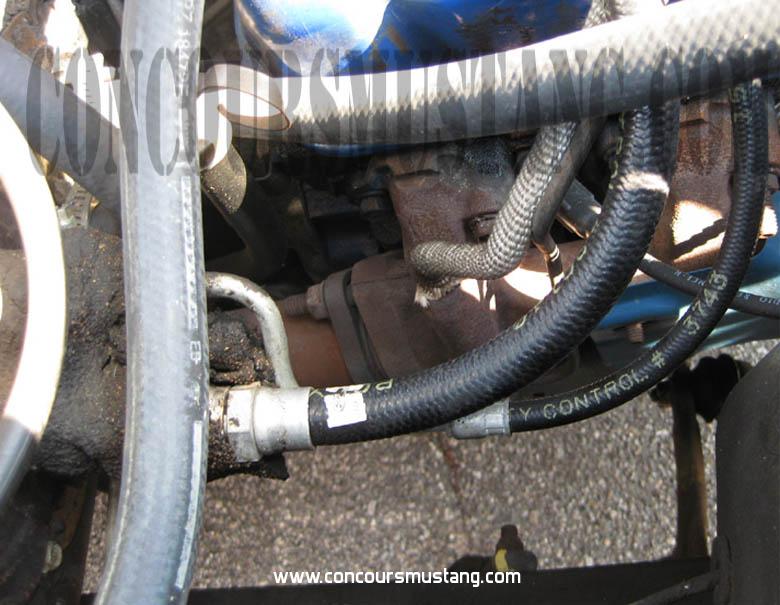

2 versions of the site glass line.

2 versions of the suction or long line to the evaporator. Note brass and aluminum ends.

Sorry for the out of focus, struggling with my camera lately.
Logged
Scott Behncke - Carcheaologist
West Coast Classic Cougars
503-463-1130
1968 GT/CS 302-4V San Jose 05B
1968 Cougar XR7 Dearborn 09A

Offline preaction

  • Hero Member
  • *****
  • Posts: 1330
Re: 67 A/C hard lines
« Reply #14 on: January 19, 2016, 10:39:03 PM »
Thanks Scott, the sight glass part on the left Im guessing is the 67 part since the other type is in Jeff's 68 pics. Is the brass ended hose the 67 part in the second pic ? Also is the hose that goes from the compressor to the condenser (short hose) the same rough exterior as the hoses shown ?
