Author Topic: 70 B2 spindle detail  (Read 3485 times)

Offline Crgjohnson

  • Full Member
  • ***
  • Posts: 123
70 B2 spindle detail
« on: August 08, 2015, 08:26:36 PM »
On my 70 B2 Dearborn car upon disassembly I see what looks to be a white 1/2" stripe paint daub over the FOMOCO logo just above the part number on the front spindle. I'm reading that a yellow stripe is correct for a power steering car. Since mine is a power steering car why would this stripe be white on mine?
« Last Edit: August 08, 2015, 08:39:38 PM by Crgjohnson »
70 BOSS 302(Dearborn 10/69) Medium Blue Metallic, CA emissions
70 BOSS 302(Dearborn 10/69) Calypso Coral, CA emissions
09 Shelby GT 500, factory stripe delete

MCA 69-71 concours BOSS gold card judge
Mustang restorer (hobby)
69 Cougar 3/69

Offline PerkinsRestoration

  • Sr. Member
  • ****
  • Posts: 292
Re: 70 B2 spindle detail
« Reply #1 on: August 09, 2015, 01:26:44 AM »

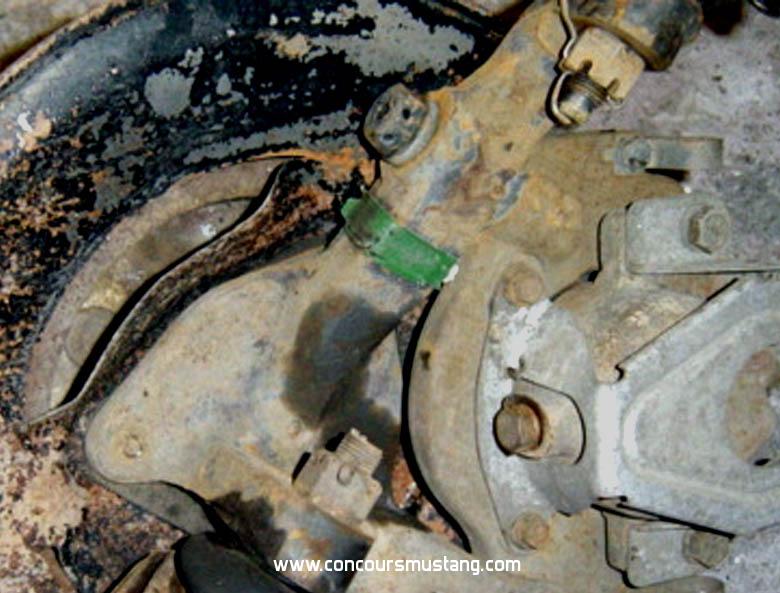

The White stripe is residue from the Green tape that was typical on the 70 spindle.

Offline Crgjohnson

  • Full Member
  • ***
  • Posts: 123
Re: 70 B2 spindle detail
« Reply #2 on: August 09, 2015, 03:01:31 AM »
Aw that makes sense. Thank you
70 BOSS 302(Dearborn 10/69) Medium Blue Metallic, CA emissions
70 BOSS 302(Dearborn 10/69) Calypso Coral, CA emissions
09 Shelby GT 500, factory stripe delete

MCA 69-71 concours BOSS gold card judge
Mustang restorer (hobby)
69 Cougar 3/69

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24623
Re: 70 B2 spindle detail
« Reply #3 on: August 09, 2015, 04:43:55 AM »
Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline Crgjohnson

  • Full Member
  • ***
  • Posts: 123
Re: 70 B2 spindle detail
« Reply #4 on: August 24, 2015, 11:50:14 PM »
Has anyone sourced this green tape. Can't seem to locate a suitable replacement.






70 BOSS 302(Dearborn 10/69) Medium Blue Metallic, CA emissions
70 BOSS 302(Dearborn 10/69) Calypso Coral, CA emissions
09 Shelby GT 500, factory stripe delete

MCA 69-71 concours BOSS gold card judge
Mustang restorer (hobby)
69 Cougar 3/69

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24623
Re: 70 B2 spindle detail
« Reply #5 on: August 25, 2015, 12:00:52 AM »
Most hardware and places like Orchard Supply carry a green fabric tape that can be spit down the length ( to produce a section that matches the original width and is long enough to go around the spindle upper shaft)  to make a substitute for the original. Just make sure you cut the new edge rather than just rippling it
Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline Crgjohnson

  • Full Member
  • ***
  • Posts: 123
Re: 70 B2 spindle detail
« Reply #6 on: November 24, 2015, 01:37:17 AM »
Thanks Jeff.
Most helpful as you always are!
70 BOSS 302(Dearborn 10/69) Medium Blue Metallic, CA emissions
70 BOSS 302(Dearborn 10/69) Calypso Coral, CA emissions
09 Shelby GT 500, factory stripe delete

MCA 69-71 concours BOSS gold card judge
Mustang restorer (hobby)
69 Cougar 3/69

Offline Motang

  • Jr. Member
  • **
  • Posts: 71
Re: 70 B2 spindle detail
« Reply #7 on: February 08, 2018, 07:08:31 PM »
Craig-were you able to source this?

Offline Crgjohnson

  • Full Member
  • ***
  • Posts: 123
Re: 70 B2 spindle detail
« Reply #8 on: February 08, 2018, 11:26:47 PM »
I think I have enough for one more B2. Let me check. Can'T remember where I sourced it>

Craig
70 BOSS 302(Dearborn 10/69) Medium Blue Metallic, CA emissions
70 BOSS 302(Dearborn 10/69) Calypso Coral, CA emissions
09 Shelby GT 500, factory stripe delete

MCA 69-71 concours BOSS gold card judge
Mustang restorer (hobby)
69 Cougar 3/69

Offline specialed

  • Hero Member
  • *****
  • Posts: 1095
Re: 70 B2 spindle detail
« Reply #9 on: February 11, 2018, 01:38:29 AM »
green thread tape

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24623
Re: 70 B2 spindle detail
« Reply #10 on: February 11, 2018, 02:08:01 AM »
Think I got mine at Orchard Supply
Jeff Speegle

Anything worth doing is worth doing concours ;)
