Topic: 1967 390 Fan Clutch Questions/Discussion

[travnemi]

Thanks Bob,
- J_Speegle posted the fan clutch part number required for my car. Hopefully this is correct, it took a while to locate this one. If not, would you have a correct part number for it?
- I'll locate a new Alt. fan, would you know how many vanes?
- the P/S dipstick had printing stamped into the metal or printing on the paint. Does the dipstick need to be chrome?

Thanks you for helping me make this the best it can be,
Travis

[Bob Gaines]

Thanks Bob,
- J_Speegle posted the fan clutch part number required for my car. Hopefully this is correct, it took a while to locate this one. If not, would you have a correct part number for it?
- I'll locate a new Alt. fan, would you know how many vanes?
- the P/S dipstick had printing stamped into the metal or printing on the paint. Does the dipstick need to be chrome?

Thanks you for helping me make this the best it can be,
Travis

The part number /engineering number may be the same between two different vendors. The specifications (physical appearance ) can be slightly different between the two parts as in the case of your fan clutch. If it was a different plant I wouldn't be so skeptical but I have seen a lot of SJ 67 Shelby's and non Shelby cars. It may be a lesser used mfg for that plant but not typical from my observations.

[Bob Gaines]

Thanks Bob,
- J_Speegle posted the fan clutch part number required for my car. Hopefully this is correct, it took a while to locate this one. If not, would you have a correct part number for it?
- I'll locate a new Alt. fan, would you know how many vanes?
- the P/S dipstick had printing stamped into the metal or printing on the paint. Does the dipstick need to be chrome?

Thanks you for helping me make this the best it can be,
Travis

NPD or Mansfield sells the Alt fan. P/S dipstick has printing stamped into the metal of the thumb handle . A black TRW pump and handle are detailed as you have it .You do have the bare metal witness line on the filler neck under the dipstick? It would have that from painting the assembled pump with the dipstick inserted.

[travnemi]

Bob,
Thank you for all your help. On the other post I had a couple of questions on the carb.
Do you have a part number on that fan clutch?
Just to make sure I understand you correctly, the Alternator needs 13 fan blades, mine currently has 10 blade.

Thanks again for all your help,
Travis

[Bob Gaines]

Bob,
Thank you for all your help. On the other post I had a couple of questions on the carb.
Do you have a part number on that fan clutch?
Just to make sure I understand you correctly, the Alternator needs 13 fan blades, mine currently has 10 blade.

Thanks again for all your help,
Travis

If you want to call on carb details PM me. It is too much to type. The fan clutch front cover is the point I was trying to make. That front cover is typical for many different fan clutches used at SJ regardless of part number . Is the one you have a C7ZE-A? Mansfield as well as others sell the correct alternator fan. http://mansfieldmustang.com/06-10.JPG  Yours is a 70 and later.

[J_Speegle]

Think the style of clutch may be due to a secondary supplier. Have seen the rectangle style "sensor" in the middle before with appropriate dates for a 67.

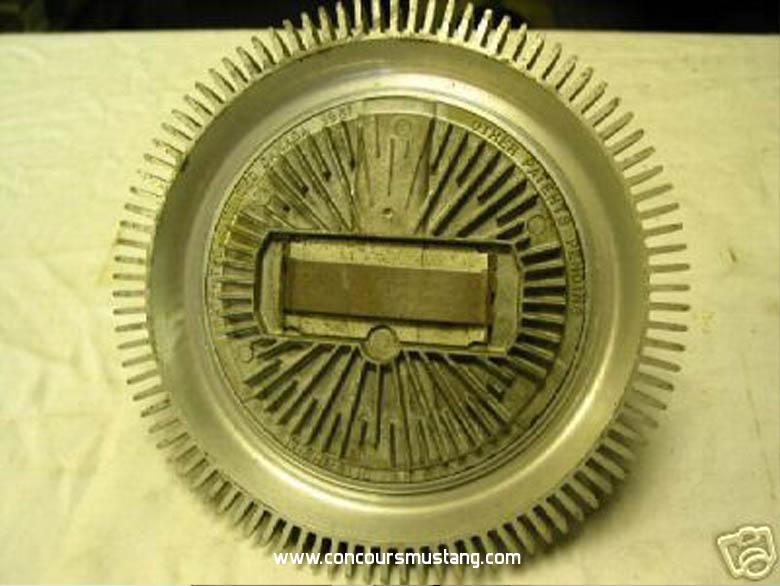

Here are a couple of examples from my collection.

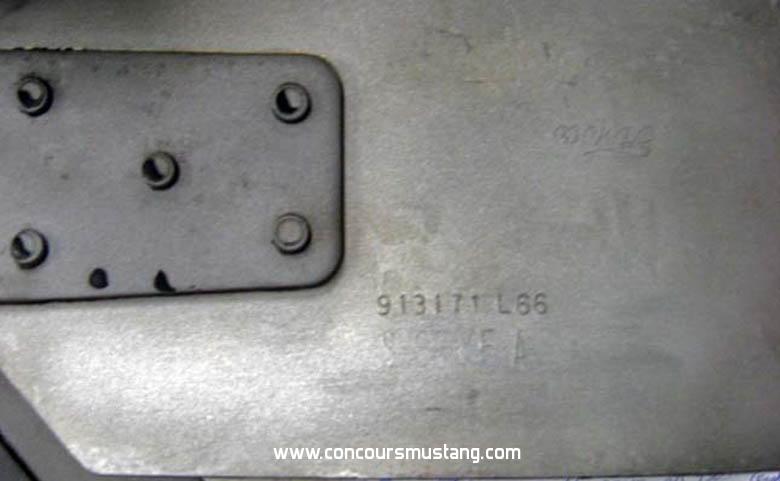

Markings recorded from this part is as follows
C6ME -A fan L66
Clutch C7AE-11-18-66

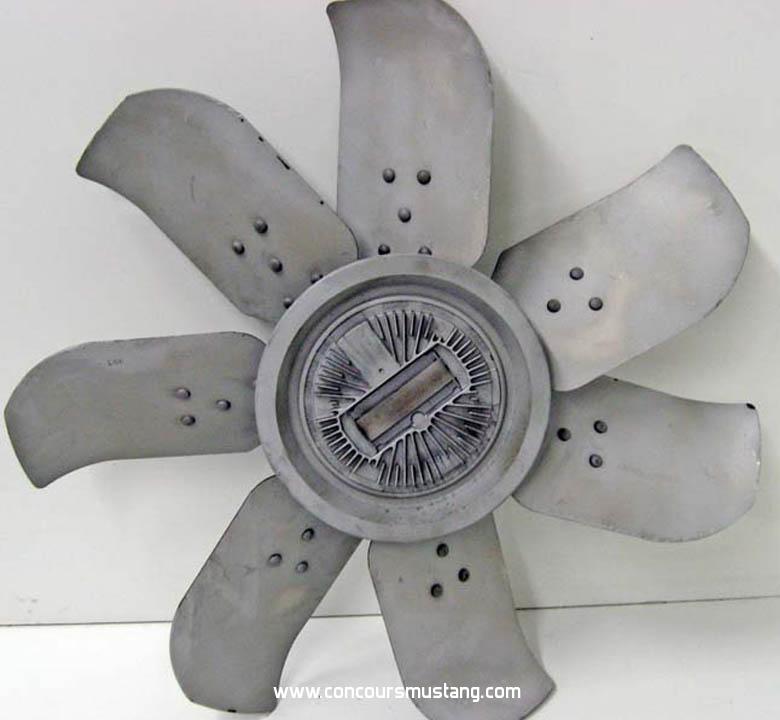

And a C7AE-A  fan clutch example - think this is the same one I posted pictures of last year when we first visited this subject







Just based on observation it appears that Ford didn't use this company or the design changed since they are not as easy to find as the others. Think the circular spring style might be easier to rebuild also

[travnemi]

Do I have the correct Alternator pulley on the Alt. I have a two belt pulley on it. As a reminder, I have a 1967 GTA S Code non A/C Dec build assembled in San Jose.

Thanks,
Travis

[J_Speegle]

Do I have the correct Alternator pulley on the Alt. I have a two belt pulley on it. As a reminder, I have a 1967 GTA S Code non A/C Dec build assembled in San Jose.

PS and Therm

Looks like

1- Two belts around the crank, water pump and alternator
2- One belt around the water pump and Thermactor pump
3- One belt around crank and P/S pump

http://www.concoursmustang.com/forum/index.php?topic=5294.0

[travnemi]

Jeff,
  I have located the PS and alternator belts, I cant seem to locate a part number or a place that sells a smog pump belt. would you have any suggestions?

Thanks,
Travis

[J_Speegle]

Jeff,
  I have located the PS and alternator belts, I cant seem to locate a part number or a place that sells a smog pump belt. would you have any suggestions?

Looks like it's going to take some hunting but as a help/start it appears that C5TE-8620-L is what your looking for 36 1/4" x 1/2"

[travnemi]

Thanks Jeff!!!

[travnemi]

I forgot to ask earlier, is the distributor hold down clamp painted engine blue or is it natural? I tried looking it up but didn't have any success.

Travis

[J_Speegle]

I forgot to ask earlier, is the distributor hold down clamp painted engine blue or is it natural?

Unpainted oiled steel

[travnemi]

I believe I found a new old Fan Clutch it has a Ford Part # C4SZ-8A616-B which is model numbers C7AE-A and C7AE-C. The only question I have is that there's no model number stamped on rim of the mounting bracket. Can anyone tell me if this is correct one? Also, the only location that the part number was on the box it came in.

Thanks,

[Bob Gaines]

I believe I found a new old Fan Clutch it has a Ford Part # C4SZ-8A616-B which is model numbers C7AE-A and C7AE-C. The only question I have is that there's no model number stamped on rim of the mounting bracket. Can anyone tell me if this is correct one? Also, the only location that the part number was on the box it came in.

Thanks,

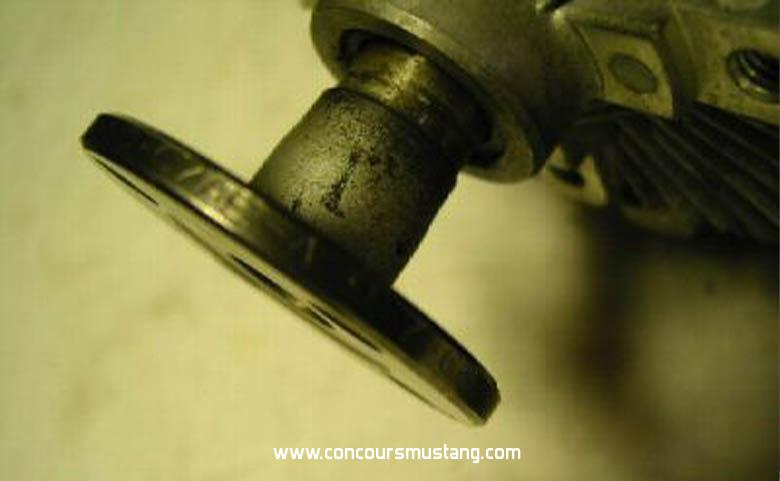

First off it is a service replacement built after 1968 based on the design of the front cover . Not too bad a thing since it hard to see once installed. Turn it sideways and take a picture . A short shaft is typical of assemblyline for a 390 , one with the longer shaft is designed as a service compromise to be used on both BB and SB applications
