Author Topic: 1968 Red Dye Fasteners Research & Discussion  (Read 9348 times)

Offline bullitt68

  • Hero Member
  • *****
  • Posts: 2204
Re: 1968 Red Dye Fasteners Research & Discussion
« Reply #45 on: September 29, 2023, 03:46:16 PM »

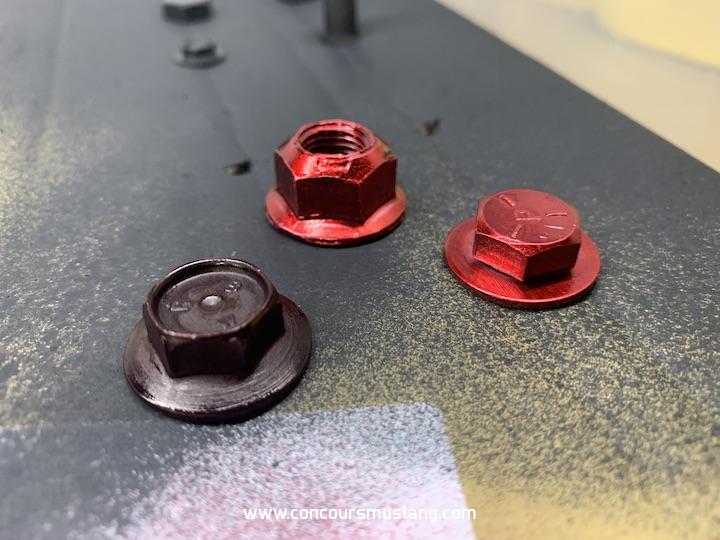

I finally received the Dykem Steel Red layout fluid (Thanks BossBill) I have the aerosol version which make application a breeze and it applies nicely. It works great on zinc, but is barely visible on Manganese Phosphate. Is there another product to use on phosphate that makes the fastener standout, or is this what was used?

Mike
1968 Mustang Fastback GT 390 Raven Black, 4 speed
8R02S162374, San Jose, June 5, 1968

Offline specialed

  • Hero Member
  • *****
  • Posts: 1095
Re: 1968 Red Dye Fasteners Research & Discussion
« Reply #46 on: October 04, 2023, 06:32:14 AM »
What about brake master cylinder nuts?

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24620
Re: 1968 Red Dye Fasteners Research & Discussion
« Reply #47 on: October 04, 2023, 10:23:15 PM »
What about brake master cylinder nuts?

Believe your referring to cars with power brakes since manuals don't have nuts used on them or to retain them they may have been dyed but haven't seen that on San Jose cars using Midland pumps. Of course for some it would not patter since them were painted over after the master cylinder was attached to the booster.  For others the assembled unit (master, booster, joining hardware, check valve and other pieces) was painted semi-gloss black and two small diameter plugs were inserted, one at each brake fluid port, that left a small round shadow one they were removed and the brake lines attached.


Might, in the weeks to follow start a 69 red dye thread and discussion since I don't want to post those examples here and take this thread sideways
« Last Edit: October 04, 2023, 10:54:58 PM by J_Speegle »
Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline steveo

  • Newbie
  • *
  • Posts: 12
Re: 1968 Red Dye Fasteners Research & Discussion
« Reply #48 on: December 13, 2023, 08:12:17 PM »
was the red dye ever used prior to 1968 and if so what years
1964 1/2 Rangoon Red/ Red Interior, White Top, 289 2V, C4 Tranny and many body parts stamped in August, latest one seen so far is Aug 24, yes, I know.

Offline bullitt68

  • Hero Member
  • *****
  • Posts: 2204
Re: 1968 Red Dye Fasteners Research & Discussion
« Reply #49 on: December 13, 2023, 10:05:11 PM »
was the red dye ever used prior to 1968 and if so what years



No as far as I know the red dye markings came into effect in the 1968 year with other new safety regulations that did not previously exist
Mike
1968 Mustang Fastback GT 390 Raven Black, 4 speed
8R02S162374, San Jose, June 5, 1968

Offline bullitt68

  • Hero Member
  • *****
  • Posts: 2204
Re: 1968 Red Dye Fasteners Research & Discussion
« Reply #50 on: March 11, 2024, 12:38:06 AM »
Here is an update on the list of red dye fasteners. I did a cross reference with the previous list with the AMK catalog and here are my findings. I will only apply red dye to the following fasteners unless advised to do otherwise.

Please fell free to add to the list of make suggestions or corrections.

*Mustang Red Dye Hardware

4-Nuts on Upper Control Arm Shaft
Chassis Manual Page 30
Finish-S
FORD Part Number 380952
AMK Reference Page 41
AMK Part Number 9414511
AMK Finish S-36 (Zinc Dichromate)

10-Nuts on Differential
Chassis Manual Page
Finish-S
FORD Part Number 34445
AMK Reference Page 44
AMK Part Number 12867 S-7 (Cad)
AMK Part Number 12869 S-7 (Cad)
AMK Part Number 12868 (S-60) Phosphate/ Dull Red
AMK Part Number 12870 (S-60) Phosphate/ Dull Red

2-Strut Rod Nuts on Lower Control Arms
Chassis Manual Page 30
Finish-S-100  (Red Dye)
FORD Part Number 382857
FORD Part Number 380952
AMK Reference Page 41
AMK Part Number B-12799(S-60) Phosphate/ Dull Red
AMK Part Number B-12798(S-2) Phosphate
AMK Part Number B-11507(S-36) Zinc Dichromate

4-Spindle Nuts on Upper & Lower Ball Joints
Chassis Manual Page 30
Finish-S-100
FORD Part Number 382826
AMK Reference Page N/A
AMK Part Number N/A
AMK Finish N/A

4-Lower Control Arm Camber Bolt Nuts
Chassis Manual Page 30
Finish-S-100  (Red Dye)
FORD Part Number 382857
FORD Part Number 380952
AMK Reference Page 41
AMK Part Number B-12799(S-60) Phosphate/ Dull Red
AMK Part Number B-12798(S-2) Phosphate
AMK Part Number B-11507(S-36) Zinc Dichromate

2-Strut Rod nuts Forward
Chassis Manual Page 30
Finish-S-8  (Zinc)
FORD Part Number 380460
AMK Reference Page 45
AMK Part Number B-12884 (S7)
AMK Part Number B-12885 (S48) Zinc/Bright Red

2-Strut Rod nuts at Bushing Aft
Chassis Manual Page 30
Finish-S-100
FORD Part Number 380517
AMK Reference Page 42
AMK Part Number B-12882 (S2)
AMK Part Number B-12883 (S60) Phosphate/ Dull Red

2-Strut Rod nuts at Bushing Aft
Chassis Manual Page 30
Finish-S-100
FORD Part Number 380517
AMK Reference Page 42
AMK Part Number B-12882 (S2)
AMK Part Number B-12883 (S60) Phosphate/ Dull Red

4-Upper & Lower Calliper Bolts
Chassis Manual Page 30
Finish-S-101
FORD Part Number 382713
AMK Reference Page 24
AMK Part Number B-13683
AMK Finish (S2 Phosphate)

2-Bolts on Forward end of Leaf Spring
Chassis Manual Page 34
Finish-S-100
FORD Part Number 382393
AMK Reference Page 31
AMK Part Number B-15014
AMK Finish S-2 (Phosphate)

8-Nuts on Rear Axle U-Bolts
Chassis Manual Page 34
Finish-S-100 (Red Dye)
FORD Part Number 379244-S
AMK Reference Page 49
AMK Part Number B-12910 (S-7)
AMK Part Number B-10491 (S-7)
AMK Part Number B-13438 (S-48) Zinc/Bright Red
AMK Part Number B-11438 (S-48) Zinc/Bright Red
AMK Finish S-7 (Red Dye)

2-Bolts attaching Flexible Brake Hose to Calliper
Chassis Manual Page 17
Finish-S-100
FORD Part Number 382365
AMK Reference Page 17
AMK Part Number B-12653
AMK Finish S-48 (Zinc/Bright Red)

4-Clips attaching Brake hardline to Floor pan
Chassis Manual Page 144
Finish-S-100
FORD Part Number C9ZA -2814-A
AMK Reference Page 144
AMK Part Number B-13168 (S-3)
AMK Part Number B-13169 (S-60) Phosphate/ Dull Red

2-Nuts attaching Brake Proportioning Valve
Chassis Manual Page 37
Finish-S-100
FORD Part Number 379930
AMK Reference Page 49
AMK Part Number B-12905
AMK Finish S-7 (Cad)

1-Adjusting Nut for Emergency Brake Cable
Chassis Manual Page 39
Finish-S-100
FORD Part Number 379930
AMK Reference Page 49
AMK Part Number B-12905
AMK Finish S-7 (Cad)

2-Nuts on Firewall attaching Emergency Brake Cable Pulley
Chassis Manual Page 39
Finish-S-100
FORD Part Number 379930
AMK Reference Page 49
AMK Part Number B-12905
AMK Finish S-7 (Cad)

3-Spring Clips on Emergency Brake Cable
Chassis Manual Page 39
Finish-S-100
FORD Part Number 382831
AMK Ref: Part Number 383475
AMK Reference Page 142
AMK Part Number B-11575 (S-2)
AMK Part Number B-13142 (S-60)Phosphate/ Dull Red

1-Spring Clip on Brake Pedal Rod
Chassis Manual Page 45
Finish-S-100
FORD Part Number 382797
AMK Ref: Part Number 380699 -S
AMK Reference Page 142
AMK Part Number B-13141 (S-60)Phosphate/ Dull Red

4-Exhaust Manifold Studs at H-Pipe
Chassis Manual Page 60/61

2-Idler Arm Attaching Bolts
Chassis Manual Page 66
Finish-S100
FORD Part Number 374420
FORD Part Number 380771
AMK Reference Page 42
AMK Part Number B-12805 (S-2)Phosphate
AMK Part Number B-12806 (S-60)Phosphate/ Dull Red
AMK Part Number B-12654 (S-2)Phosphate
AMK Part Number B-11617 (S-60)Phosphate/ Dull Red

2-Idler Arm Attaching Nuts
Chassis Manual Page 66
Finish-S-100
FORD Part Number 382832
AMK Reference Page N/A
AMK Part Number 12168 (S-60)Phosphate/ Dull Red

1-Nut attaching Pittman Arm to Steering Box
Chassis Manual Page 66
Finish-S-100
FORD Part Number 380771
AMK Reference Page 42
AMK Part Number B-12805 (S-2)Phosphate
AMK Part Number B-12806 (S-60)Phosphate/ Dull Red

3-Bolts attaching Steering Box to Frame
Chassis Manual Page 67
Finish-S-2
FORD Part Number 378331
AMK Reference Page 19
AMK Part Number B-12670 (S-2)Phosphate
AMK Part Number B-11458 (S-60)Phosphate/ Dull Red

1-Clamp Bolt on Input Shaft to Steering Box
Chassis Manual Page 68
Finish-S-100
FORD Part Number 358794
FORD Part Number 385970
AMK Reference Page 19
AMK Part Number B-12734 (S-2)Phosphate
AMK Part Number B-11504 (S-60)Phosphate/ Dull Red

2-Nuts on Steering Flex Coupling
Chassis Manual Page 68

1-Nut attaching Steering Wheel to Steering Shaft
Chassis Manual Page 68
Finish-S-100
FORD Part Number 382412
AMK Reference Page 45
AMK Part Number B-10014 (S-7)Cad

2-Front Seat Belt Bolts Outboard
Interior Manual Page 35
Finish-S-100
FORD Part Number 382627
AMK Reference Page 184
AMK Part Number B-10434 (S-36)Zinc Dichromate

2-Front Seat Belt Washers/Spacers Outboard
Interior Manual Page 35
Finish-S
FORD Part Number 354959
AMK Reference Page 174
AMK Part Number B-11294 (S) No Finish

2-Front Seat Belt Spacers Shoulder Belts
Interior Manual Page 36
Finish-S-13
FORD Part Number C8AB-6260228-B
AMK Reference Page 158
AMK Part Number B-10930 (S-13) Chrome

4-Front Seat Belt Inboard Washers/Spacers at Driveshaft Tunnel
Interior Manual Page 36

4-Rear Seat Belt Bolts and Washers/Spacers
Interior Manual Page 45
