Author Topic: 66 289 A/C hose bracket for mustang  (Read 811 times)

Offline 66RavenGTCoupeAgain

  • Full Member
  • ***
  • Posts: 200
66 289 A/C hose bracket for mustang
« on: December 21, 2020, 03:06:22 AM »
Hi there,
Any info and/or pictures of what was used on a 289?
« Last Edit: December 21, 2020, 05:44:07 AM by J_Speegle »
66 Metuchen NJ  GT Coupe
Raven with Deluxe Black Int 289 A Code C4 PS Tinted Windows (Green) Dealer installed Rear Speaker
6T07A1612## Dec 65 Build
65 San Jose CA Convertible Rangoon Red with White Int and Power Top with plastic rear window 289 C Code C4 PS PB AC Fog Lights
5R08C1496## Oct 64 Build

Offline 196667Bob

  • Hero Member
  • *****
  • Posts: 1054
Re: 66 289 A/C hose bracket for mustang
« Reply #1 on: December 21, 2020, 08:40:59 PM »
There were both a Bracket and a Clip used to hold the hoses. The first attachment is from the 1966 Electrical Assembly Manual. The Clip goes on the metal tube portion of the high pressure (smallest) hose. The Clip is noted as Standard Part # 374998. I have attached a copy from a Ford Standard and Utility Parts Catalog showing a detail of this Clip. The Bracket is shown as Engineering (not Service) Part Number C6ZA-19812-A.

The next attachment is from the Ford Master Parts Catalog, 1960-68. Note first that Standard Part 374998 is shown here for Fairlanes and Falcons, and that another Standard Part (357949) is shown for Mustangs. What one must remember is that the Assembly Manuals were to be used at the Factory when the car was being built, and the Master Parts Catalogs were generally oriented to Service Parts, available via the Dealers' Parts Counters. That being said, note the "Stars" shown by both the Hose Bracket (general Part #19812), and by 374998. The "Star" signifies that this part was not available as a Service Part ; ie only at the Factory when the car was built.

I have also attached  a detail of Standard Part 357946 for information. Note that 357946 notes that the part is rubber coated, while 374998 appears to have a plastic/ vinyl sleeve on it, much like the picture I have attached of a wiring clip. As a matter of interest here, is that a high pressure line that got from a donor 66 to replace the one on mine which had burned, was the rubber coated 357946 one (pictures attached). Also, I do not know of anyone who sells a reproduction 19812 Bracket.

Finally, It is possible that the Dealer installed 1966 A/C used a different Bracket (or possibly none), but I have not found a copy of the Dealer Instructions that I thought I had. Possibly someone has this so we can see what was *or was not) used.

Hope this helps some.

Bob


1966 Coupe, C Code, 3 Sp MT, 6T07C154XXX, Build Date 11/22/65
1967 Conv, C Code, C4, 7F03C154XXX, Actual Build Date 01/31/67
MCA 04909

Offline jwc66k

  • Hero Member
  • *****
  • Posts: 7346
Re: 66 289 A/C hose bracket for mustang
« Reply #2 on: December 21, 2020, 11:42:03 PM »
Per the 64, 65 and 66 Mustang Electrical Assembly Manuals, Ford used 357949-S on 64 Mustangs only, and used 374998-S in 65 and 66.
Ford Car Parts (aka MPC) is not always the best source for what was used, it is for replacements.
Jim
I promise to be politically correct in all my posts to keep the BBBB from vociferating.

Offline 196667Bob

  • Hero Member
  • *****
  • Posts: 1054
Re: 66 289 A/C hose bracket for mustang
« Reply #3 on: December 22, 2020, 12:00:14 AM »
Jim : I believe that I pointed that out in the above, with the "Service parts" reference.

Bob
1966 Coupe, C Code, 3 Sp MT, 6T07C154XXX, Build Date 11/22/65
1967 Conv, C Code, C4, 7F03C154XXX, Actual Build Date 01/31/67
MCA 04909

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24620
Re: 66 289 A/C hose bracket for mustang
« Reply #4 on: December 22, 2020, 01:27:51 AM »
Hi there,
Any info and/or pictures of what was used on a 289?

Appears to be the same bracket/strap and retaining hardware as a 6 cylinder

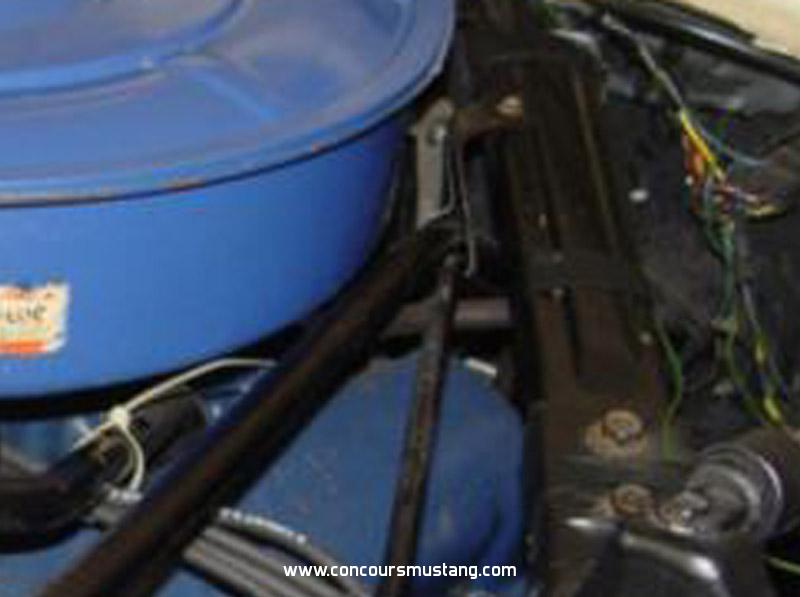

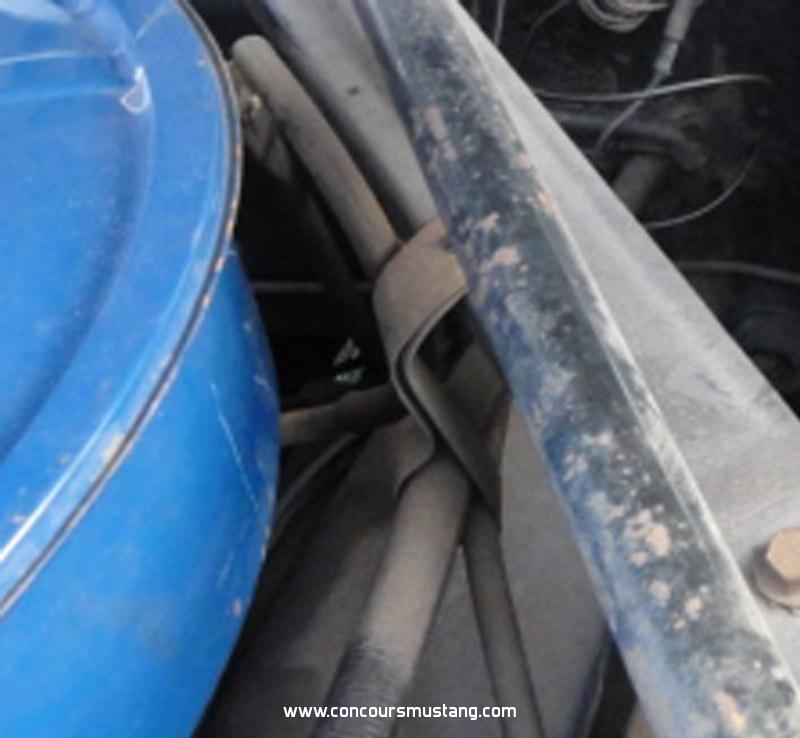

Just strap steel preformed held to the drivers side shock tower support with a single hex headed screw. Not rubber dipped or coated as shown in the following

From the Unrestored picture Thread sections - There you will find picture in the following location ;)

Early 66 SJ GT Convertible - Unrestored Picture Thread Pic #EC5


Additional  examples - Have more but stopped with these








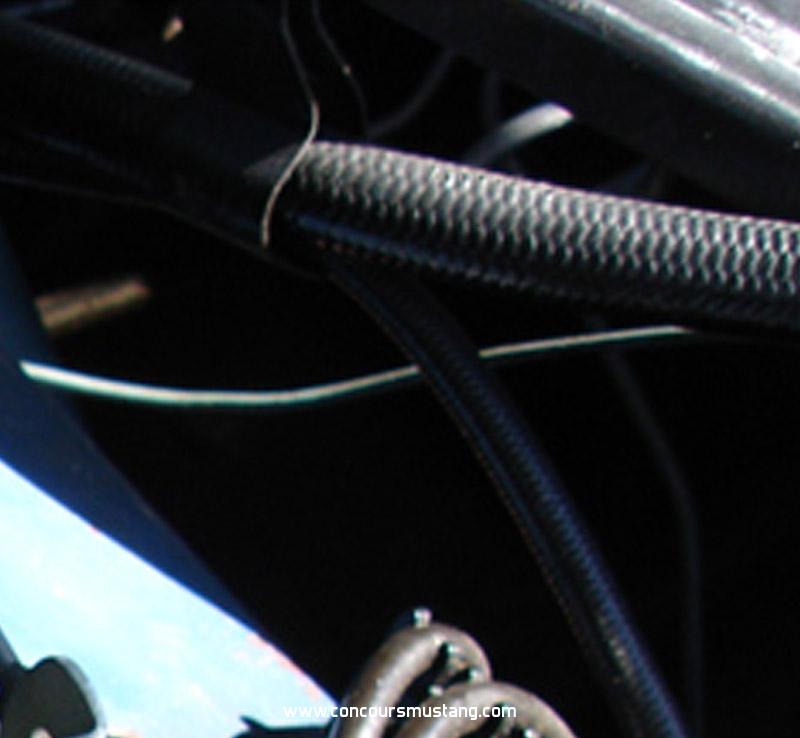

Retaining hardware hard markings differ as usual from plant to plant



Hope this helps



Jeff Speegle

Anything worth doing is worth doing concours ;)
