'66 alternator wiring routing (San Jose built 289)
« on: June 24, 2017, 10:52:08 AM »
Looking for a picture showing the routing of the alternator wire harness from where it connects to the alternator to where it connects to the main harness.
Logged

Offline Bob Gaines

  • Global Moderator
  • Hero Member
  • ****
  • Posts: 9361
Re: '66 alternator wiring routing (San Jose built 289)
« Reply #1 on: June 24, 2017, 11:04:02 AM »
Quote from: socalgt on June 24, 2017, 10:52:08 AM
Looking for a picture showing the routing of the alternator wire harness from where it connects to the alternator to where it connects to the main harness.
Check the shop manual for a  informative illustration. The harness plugs in as it cross's over towards the right apron.
« Last Edit: June 24, 2017, 11:07:08 AM by Bob Gaines »
Logged
Bob Gaines,Shelby enthusiast, Shelby collector , Shelby concours judge SAAC,MCA,Mid America Shelby

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24625
Re: '66 alternator wiring routing (San Jose built 289)
« Reply #2 on: June 24, 2017, 03:18:02 PM »

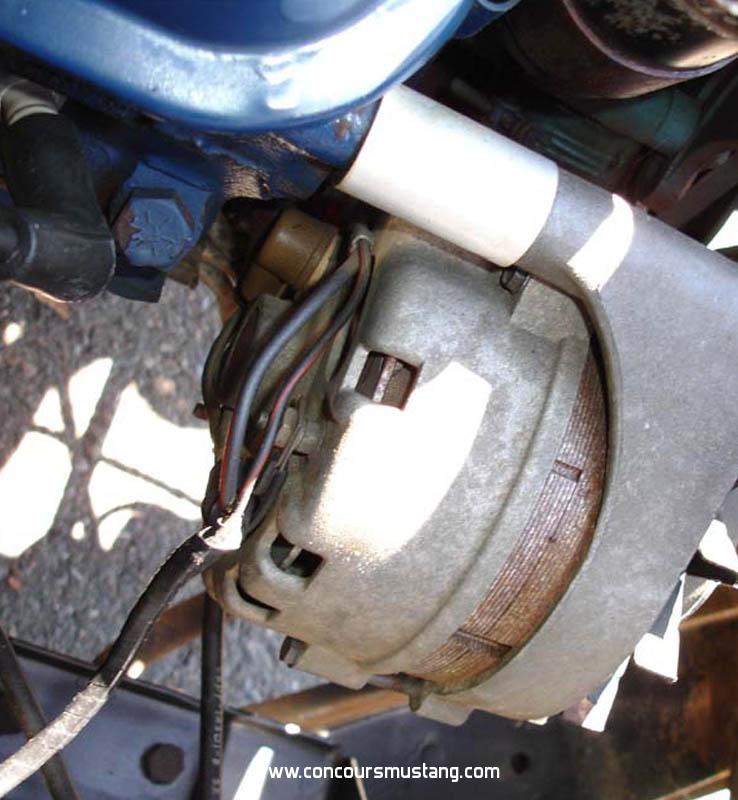

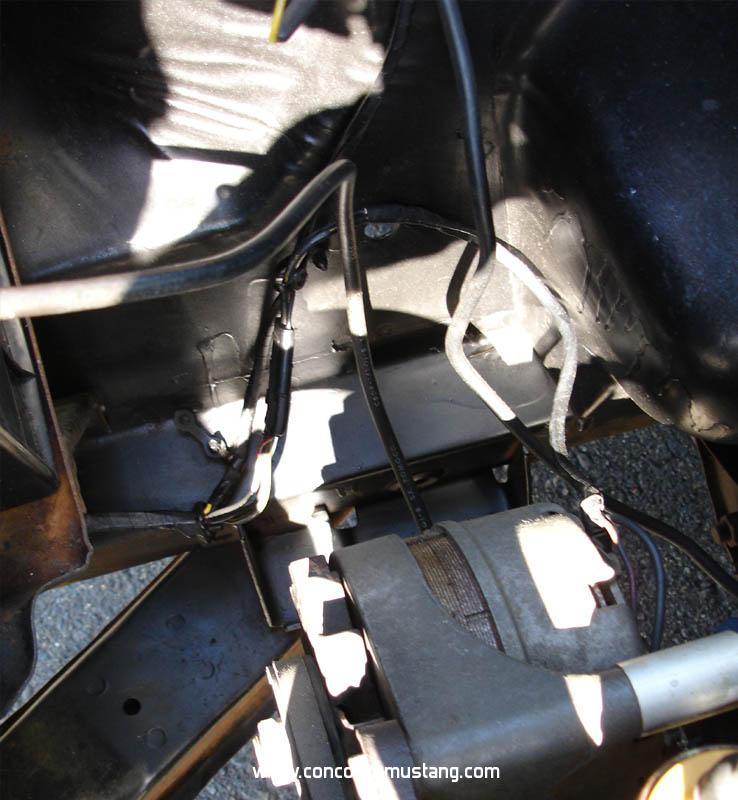

This should help - July 66 example




Logged
Jeff Speegle

Anything worth doing is worth doing concours ;)
