66 200 I6 courtesy lights
« on: December 02, 2015, 04:03:51 PM »
Hi,

just to answer how many courtesy lights had the 66 200ci SIX standard trim.
I found one bulb socket under the dash (or under the glove box), just in front of the passengers seat.
Haven't seen nor find any other place for the matter.
Thanks.
Logged
1966 Mustang Hardtop 200 Inline 6 - Arcadian Blue - C4 - Thermactor - 6R07T213966 - San Jose projected build date June 11th 1966 - DSO 71
1966 Mustang Convertible 289-2V - Vintage Burgundy - AT PS DB - 6F08C109403 - Dearborn projected build date September 9th 1965 - DSO 36

Offline midlife

  • Wiring Guru---let me check your shorts!
  • Global Moderator
  • Hero Member
  • ****
  • Posts: 2176
    • Midlife Harness Restorations
Re: 66 200 I6 courtesy lights
« Reply #1 on: December 02, 2015, 09:21:38 PM »
There should be a second one located approximately under the ignition switch area under the dash.
Logged
Midlife Harness Restorations - http://midlifeharness.com

Offline CharlesTurner

  • Charles Turner
  • Administrator
  • Hero Member
  • *****
  • Posts: 7687
Re: 66 200 I6 courtesy lights
« Reply #2 on: December 02, 2015, 10:02:48 PM »
FYI, there is no interior trim tied to the engine option for 65-66 that I am aware of.
Logged
Charles Turner - MCA/SAAC Judge
Concours Mustang Forum Admin

Offline jwc66k

  • Hero Member
  • *****
  • Posts: 7347
Re: 66 200 I6 courtesy lights
« Reply #3 on: December 03, 2015, 04:26:45 PM »
Quote from: Josep on December 02, 2015, 04:03:51 PM
just to answer how many courtesy lights had the 66 200ci SIX standard trim.
I found one bulb socket under the dash (or under the glove box), just in front of the passengers seat.
Haven't seen nor find any other place for the matter.
Josep,
  There may be wiring information in the library section of this forum that will help you. A few minutes ago, I used the Yahoo search feature entering "1966 mustang wiring" (the search engine added diagram) and it came back with a lot of diagrams and other info. Also, consider getting a set of Mustang Assembly Manuals for your year car, 1966. They have many answers to questions you haven't even thought of yet. They are copies of original Ford assembly line drawings - Body; Interior; Electrical; Engine Accessories. Also, the 64-65 Chassis is helpful although it's not for your year.
Jim
Logged
I promise to be politically correct in all my posts to keep the BBBB from vociferating.

Offline J_Speegle

  • Administrator
  • Hero Member
  • *****
  • Posts: 24630
Re: 66 200 I6 courtesy lights
« Reply #4 on: December 03, 2015, 09:24:01 PM »
Quote from: midlife on December 02, 2015, 09:21:38 PM
There should be a second one located approximately under the ignition switch area under the dash.

Logged
Jeff Speegle

Anything worth doing is worth doing concours ;)

Offline Josep

  • Sr. Member
  • ****
  • Posts: 441
66 200 SIX Standard trim courtesy lights
« Reply #5 on: December 04, 2015, 10:17:06 AM »
Hi guys,

I wanna ask you how many factory courtesy lights had my standard pony..?
I found a bulb socket under the dash (no bulb), or under the glove box. Haven't seen any other nor in any other place, so 1 should be the answer.? I just put a bulb and it worked.!
« Last Edit: December 04, 2015, 10:21:37 AM by caspian65 »
Logged
1966 Mustang Hardtop 200 Inline 6 - Arcadian Blue - C4 - Thermactor - 6R07T213966 - San Jose projected build date June 11th 1966 - DSO 71
1966 Mustang Convertible 289-2V - Vintage Burgundy - AT PS DB - 6F08C109403 - Dearborn projected build date September 9th 1965 - DSO 36

Offline CharlesTurner

  • Charles Turner
  • Administrator
  • Hero Member
  • *****
  • Posts: 7687
Re: 66 200 SIX Standard trim courtesy lights
« Reply #6 on: December 04, 2015, 10:21:16 AM »
There would be 2 under-dash lights as standard for all 65-66 no matter the options.
Logged
Charles Turner - MCA/SAAC Judge
Concours Mustang Forum Admin

Offline Josep

  • Sr. Member
  • ****
  • Posts: 441
Re: 66 200 SIX Standard trim courtesy lights
« Reply #7 on: December 04, 2015, 10:27:27 AM »
Thanks Charles.!
So, the second one's place to be is in front of the drivers seat.? Any place to check for the correct place to fit.?
I can't see any bracket nor a socket from the drivers position.
Logged
1966 Mustang Hardtop 200 Inline 6 - Arcadian Blue - C4 - Thermactor - 6R07T213966 - San Jose projected build date June 11th 1966 - DSO 71
1966 Mustang Convertible 289-2V - Vintage Burgundy - AT PS DB - 6F08C109403 - Dearborn projected build date September 9th 1965 - DSO 36

Offline Josep

  • Sr. Member
  • ****
  • Posts: 441
Re: 66 200 I6 courtesy lights
« Reply #8 on: December 04, 2015, 10:33:10 AM »
Sorry I didn't find your answers.! Message moved here so I missed the tracking.!

Thank you very much to all for your responses, and sorry to post again the same question.

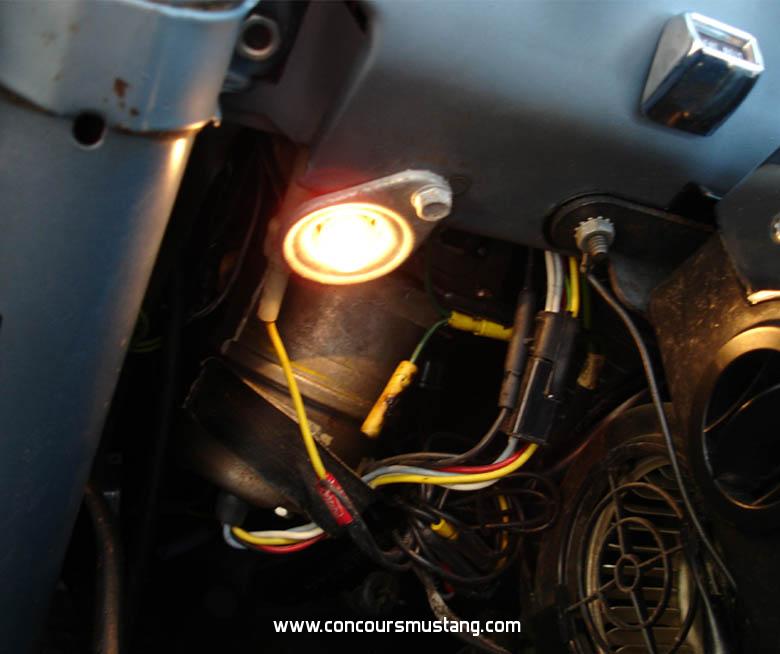

Thanks for the pic as well..
Logged
1966 Mustang Hardtop 200 Inline 6 - Arcadian Blue - C4 - Thermactor - 6R07T213966 - San Jose projected build date June 11th 1966 - DSO 71
1966 Mustang Convertible 289-2V - Vintage Burgundy - AT PS DB - 6F08C109403 - Dearborn projected build date September 9th 1965 - DSO 36

Offline Josep

  • Sr. Member
  • ****
  • Posts: 441
Re: 66 200 I6 courtesy lights
« Reply #9 on: December 04, 2015, 10:57:21 AM »
Jeff, please, what should be the replacement part for the missing courtesy light..?
I have found this bracket but think I need something else to connect wires to the bulb.
Thanks
Logged
1966 Mustang Hardtop 200 Inline 6 - Arcadian Blue - C4 - Thermactor - 6R07T213966 - San Jose projected build date June 11th 1966 - DSO 71
1966 Mustang Convertible 289-2V - Vintage Burgundy - AT PS DB - 6F08C109403 - Dearborn projected build date September 9th 1965 - DSO 36

Offline midlife

  • Wiring Guru---let me check your shorts!
  • Global Moderator
  • Hero Member
  • ****
  • Posts: 2176
    • Midlife Harness Restorations
Re: 66 200 I6 courtesy lights
« Reply #10 on: December 04, 2015, 08:56:30 PM »
The lamp socket has some exterior prongs that will fit snugly into the large hole of that bracket.
Logged
Midlife Harness Restorations - http://midlifeharness.com

Offline Josep

  • Sr. Member
  • ****
  • Posts: 441
Re: 66 200 I6 courtesy lights
« Reply #11 on: December 05, 2015, 04:04:03 AM »
Any place that you know I can buy the correct one.??
Logged
1966 Mustang Hardtop 200 Inline 6 - Arcadian Blue - C4 - Thermactor - 6R07T213966 - San Jose projected build date June 11th 1966 - DSO 71
1966 Mustang Convertible 289-2V - Vintage Burgundy - AT PS DB - 6F08C109403 - Dearborn projected build date September 9th 1965 - DSO 36

Offline midlife

  • Wiring Guru---let me check your shorts!
  • Global Moderator
  • Hero Member
  • ****
  • Posts: 2176
    • Midlife Harness Restorations
Re: 66 200 I6 courtesy lights
« Reply #12 on: December 05, 2015, 08:10:39 AM »
The lamp socket and associated wiring are integral to the 1966 underdash harness.  I can salvage one for you from my supply of cores.

Randy
contact me via e-mail through my website: http://midlife66.com/harnesses
