Topic: 68 single exhaust 289 pictures??

[RogerArrick]

Does anyone have pics of a single exhaust system on a 68 w/289 ?

Specifically the tail hanger.  Did it bolt to the frame rail or use the tie-down bracket?
NPD shows a strap-looking thing for the tail hanger - is that right?

Mine had bolts and insulators to the tie down bracket but it had been redone years ago.

NPD is showing 2 clamps on the end piece - 2" and 2-1/4"  What's that all about?

Was there an exhaust tip at all?

[TLea]

Do you have an assembly manual?

[Dudley]

to the frame, unfortunately my photo album doesn't show that connection, only slightly the muffler hanger..........http://www.allfordmustangs.com/photopost/showgallery.php/cat/500/ppuser/105333

[J_Speegle]

Specifically the tail hanger.  Did it bolt to the frame rail or use the tie-down bracket?

Tie down bracket ? No they made hangers for this purpose


Hope these help

[Dudley]

J speegle's second picture is what I have, the pipe hanger is about five inches before the tie down.

[J_Speegle]

Bottom two shots are from the same car

[dkknab]

I have a dual exhaust but am sure that it souk be single.  Any pictures around of the entire tubing under the car and what is the part number for the Y section?

[67gta289]

This is how Ford would have serviced the exhaust systems in 1968.  The "Y" inlet pipe service part number is C8ZZ-5246-C.

***Edited to change from 67 to 68***

[tim_morrison82]

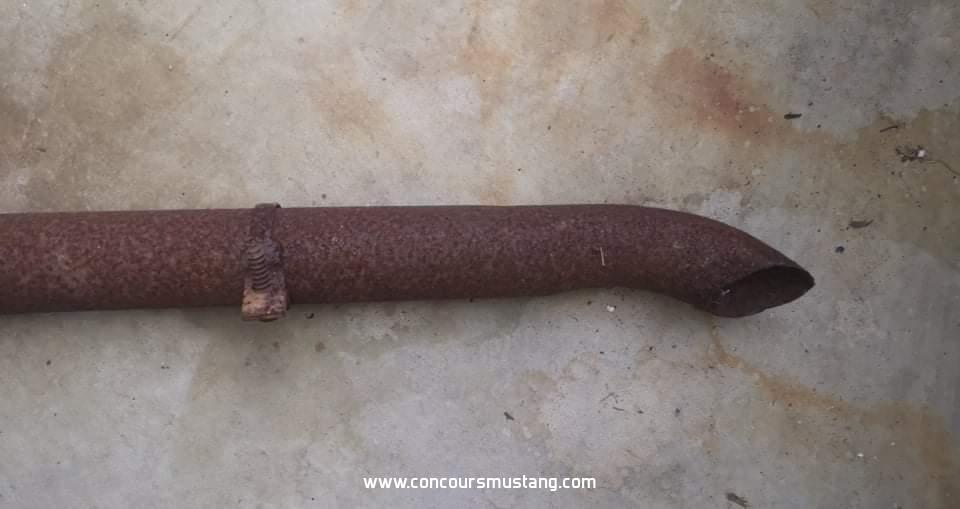

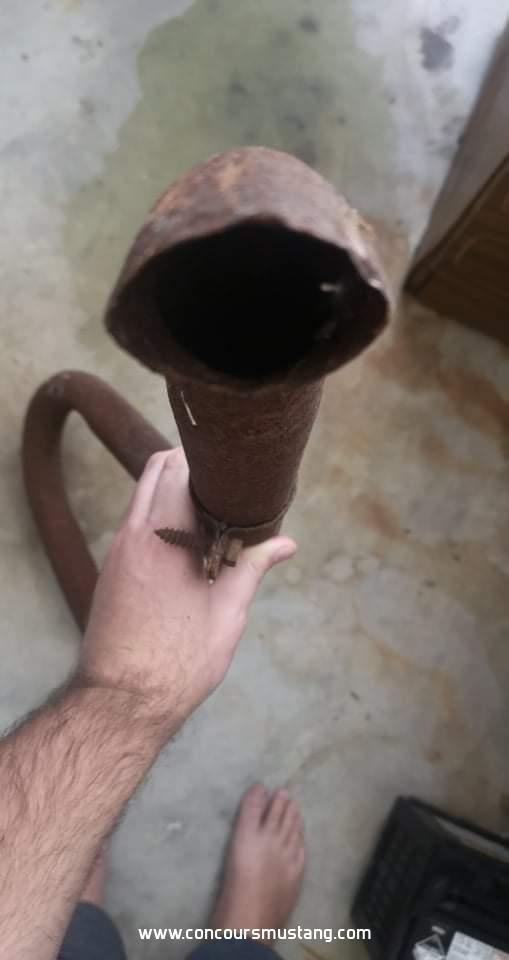

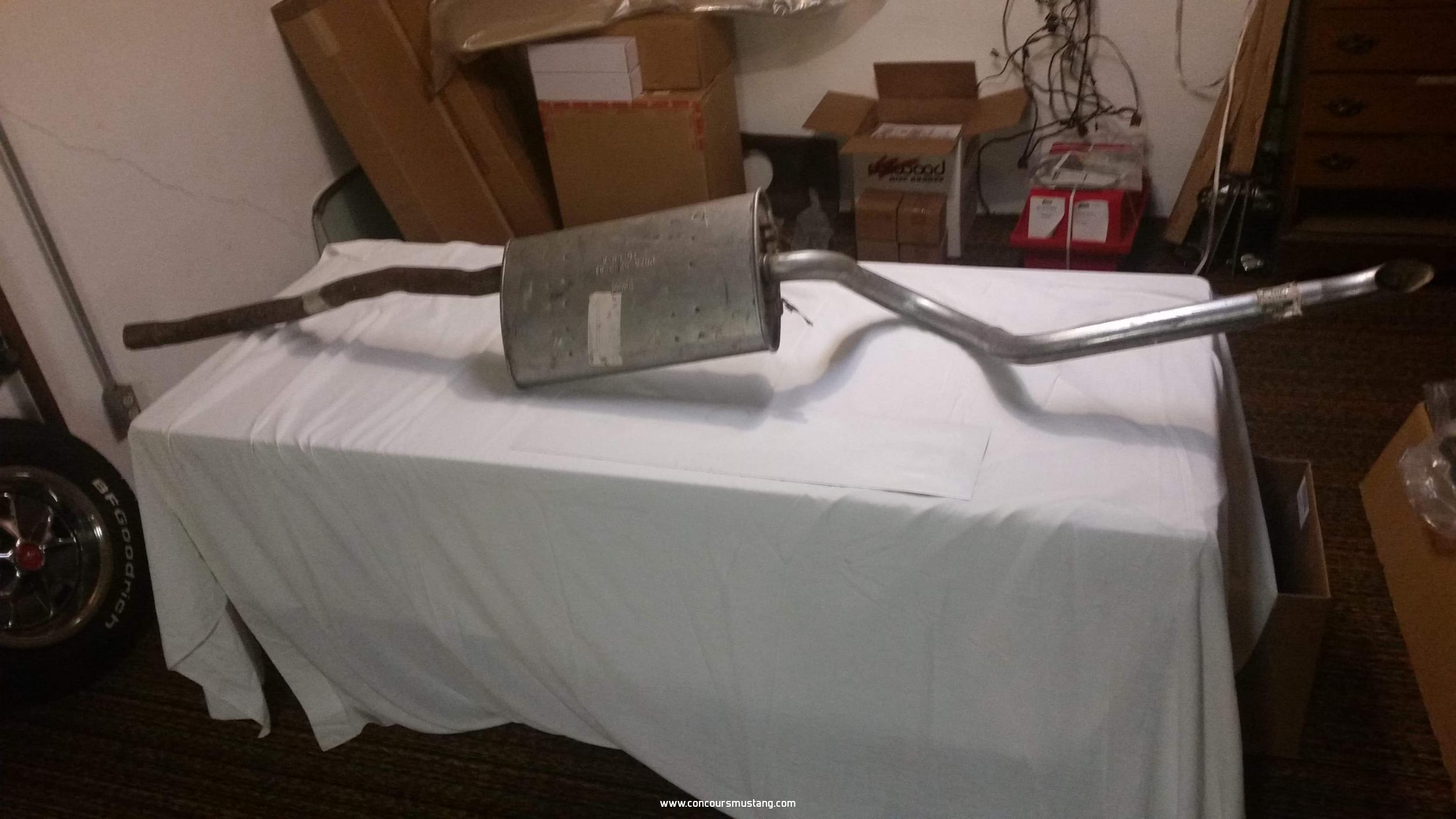

68 single exhaust is complely different to the 67 version. 68 the muffler and pipes extent back in a straight line where 67 is 90 degree into the muffler and 90 degrees out. The y pipe also is different to a 68. The parts are not interchangeable without completely removing the system from manifolds to tip. I would also assume hangers were also relocated with the different positions. I have a nos exhaust waiting for me to ship. Its 91 inches long, 1 piece and runs from the end of the Y pipes to the tail. I'll get the pic uploaded and drop it in here.
